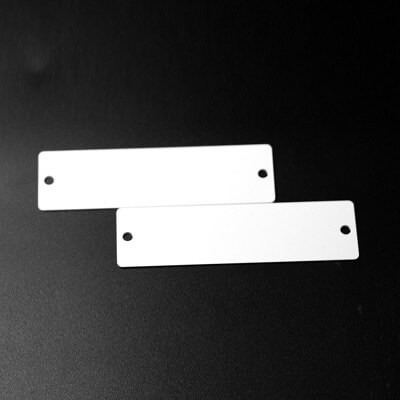

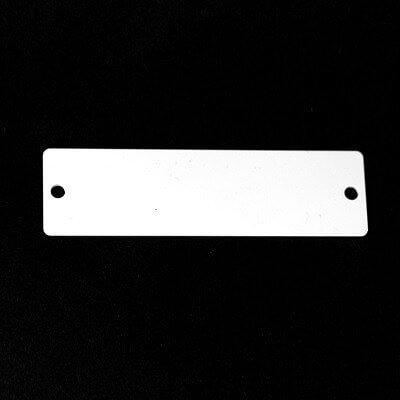

UCT9025 UHF PVC Card Tag – For Pallets & Assets Management
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
US 902-928MH
Tag dimensions
90*25*1mm / 3.54”*0.98″*0.03″
Mechanical Specification
Substrate
PET
Shell material
PVC
Weight
About 4.3g / sheet
Printing
Blank, color (can be customized)
Tag dimensions
90*25*1mm / 3.54”*0.98”*0.03”
Installation method
Back glue, Rivets
Electrical Specification
Air interface protocol
EPC Global Class1 Gen2
ISO 18000-6C
Operational frequency
US 902-928MHz
IC type
Impinj M730
Memory configuration
EPC 128 bits, Unique TID 96 bits,User Memory 0 bits
Application medium
Non-metallic surface
Reading range(Handheld reader)
More than 6m
Data storage
10 years
Read and write times
100,000 times
Environmental Resistance
Operating temperature
-20°C~80°C / -4°F~176°F
Ambient temperature
-30°C~100°C / -22°F~148°F
Sealing
IP67
Certification
RoHS
Application Area
Logistics & Supply Chain
RFID increases visibility of processes in the areas of logistics and supply chain management. This real-time updated information help us maximize efficiency and reduce operating…
Retail & Apparel
In the field of clothing and footwear retailing, the use of RFID can increase the inventory accuracy rate to 99%, creating a perfect shopping experience…
