T02 UHF RFID Label
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
Global 860-960MHz
Tag dimensions
76*34mm / 2.99”*1.33”
Mechanical Specification
Base Material
PET
Face Material
80g Coated Paper
Liner
Release Paper

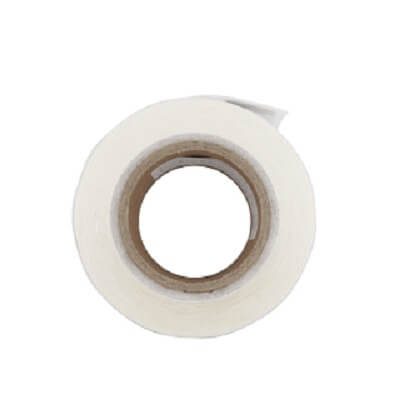

Quantity
2500 PCS / Roll (Can Be Customized)
Reel Inner Diameter
76.2 mm / 3″
Tag Dimensions
76 * 34mm / 2.99” * 1.33”

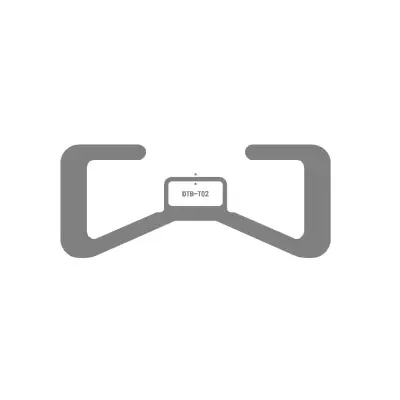

Antenna Dimensions
72 * 30 mm / 2.83″ * 1.18″
Electrical Specification
Air Interface Protocol
EPC Global Class1 Gen2 1S018000-6C
Frequency
(US Standard) 902-928 MHz
IC Type
Impinj M730
Memory
EPC 128 bits;TID 48 bits; User Memory:No
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
Non Metal Surface
Reading Range
About 12 m (US Standard, Handheld 1W)
Environmental Resistance
Operating temperature
-20°C-80°C
Storage Temperature
20°C-100°C
Storage Humidity
20-90 % Relative Humidity
Shelf Life
20°C-30°C, 40-60% Relative Humidity, More Than 2 Years
Application Area
Logistics & Supply Chain
