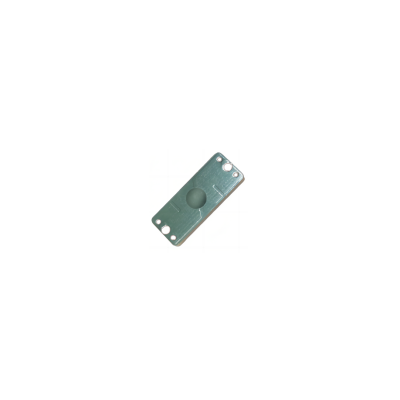

PCB4015UA PCB Anti-Metal Tag – For Supply Chain & Assets Management
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
US 902-928MH
Tag dimensions
40 * 15 * 3mm
Mechanical Specification
Material
FR4(PCB)
Weight
About 18g / Piece
Thickness
3.0 mm ((Excluding Chip Bumps)
3.7 mm (Including Chip Bumps)
Color
Black
Installation Method
Adhesive, Screws
Tag Dimensions
40 * 15 * 3mm
Electrical Specification
Air interface protocol
EPC Global Class1 Gen2
ISO 18000-6C
Operational frequency
US 902-928MHz
IC type
NXP UCODE 8
Memory configuration
EPC 128 bits, TID 96 bits; User Memory: No
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
Metal Surface
Reading Range
About 2.5m (US Standard, Handheld 1W)
Environmental Resistance
Operating temperature
-20°C~80°C
Storage Temperature
-30°C~120°C
Sealing Level
IP68
Certification
RoHS
Application Area
Logistics & Supply Chain
RFID increases visibility of processes in the areas of logistics and supply chain management. This real-time updated information help us maximize efficiency and reduce operating…
Retail & Apparel
In the field of clothing and footwear retailing, the use of RFID can increase the inventory accuracy rate to 99%, creating a perfect shopping experience…
