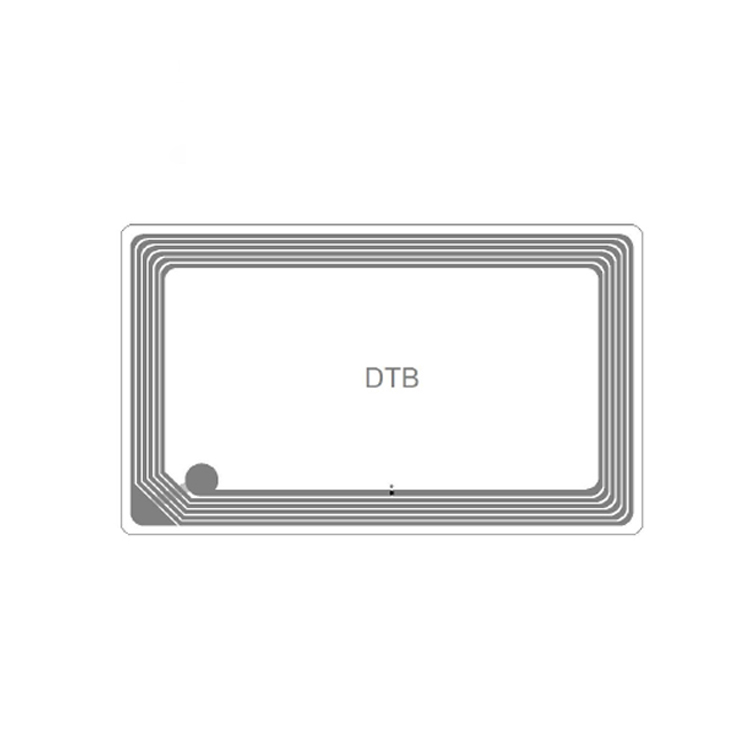

HB76 HF RFID Label
Air interface protocol
ISO/IEC 15693
Operational frequency
Global 13.56MHz
Tag dimensions
80 x 50 mm / 3.15” x 1.97”
Mechanical Specification
Substrate
PET
Face material
Coated Paper
Liner
Glassine Liner
Weight
About 3.0kg / reel
Delivery format
1000 pcs / reel
Pitch on reel
76.2 mm / 3”
Reel core inner diameter
56 mm / 2.2”
Tag dimensions
80 x 50 mm / 3.15” x 1.97”
Electrical Specification
Air interface protocol
ISO/IEC 15693
Operational frequency
13.56 MHZ
IC type
Icode SLIX
Memory configuration
1024 bits EEPROM Read/Write
READ range
10mm
Data Duration
5 year
Writing Cycle
100,000 time
Environmental Resistance
Operating temperature
-40°C～85°C / -40°F～185°F
Storage temperature
-20°C～50°C/ -4°F～122°F
Storage humidity
20～90% RH
Shelf life
At least 2 year at 20°C～30°C(68°F～86°F), 40～60％ RH
Green rating
ROHS
Application Area
Retail & Apparel
In the field of clothing and footwear retailing, the use of RFID can increase the inventory accuracy rate to 99%, creating a perfect shopping experience…
Library Management
The use of RFID technology in the library can realize the visualization of book borrowing, returning, putting on shelves, and inventory, which greatly improves the…
