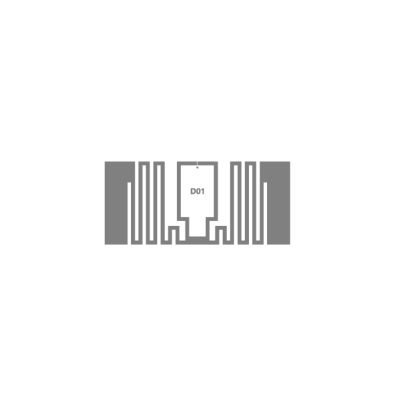

D01 UHF RFID Label

D01 UHF RFID Label

Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C

Operational frequency
Global 860-960MHz

Tag dimensions
43 * 21mm

Mechanical Specification

Base Material
PET

Face material
80g Coated Paper

Liner
Glassine

Quantity
2500PCS/Roll(Can Be Customized)

Reel Inner Diameter
76.2 mm

Tag dimensions
43*21 mm

Antenna Dimensions
40*18 mm

Electrical Specification

Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C

Operational frequency
Global 860-960MHz

IC type
NXP UCODE 9xe

Memory
EPC 128/256/496 bits; TID 96 bits; User Memory: 752/624/384 bits

IC Life
100,000 Times

Data Retention
10 Years

Application Surface
Non Metal Surface

Read range
About 8 m(US Standard, Handheld 1W)

Other Parameters

Operating temperature
-20°C～80°C

Storage Temperature
20°C～30°C

Storage Humidity
20~90% Relative Humidity

Shelf Life
20°C~30°C,40~60% Relative Humidity, More Than 2 Years
