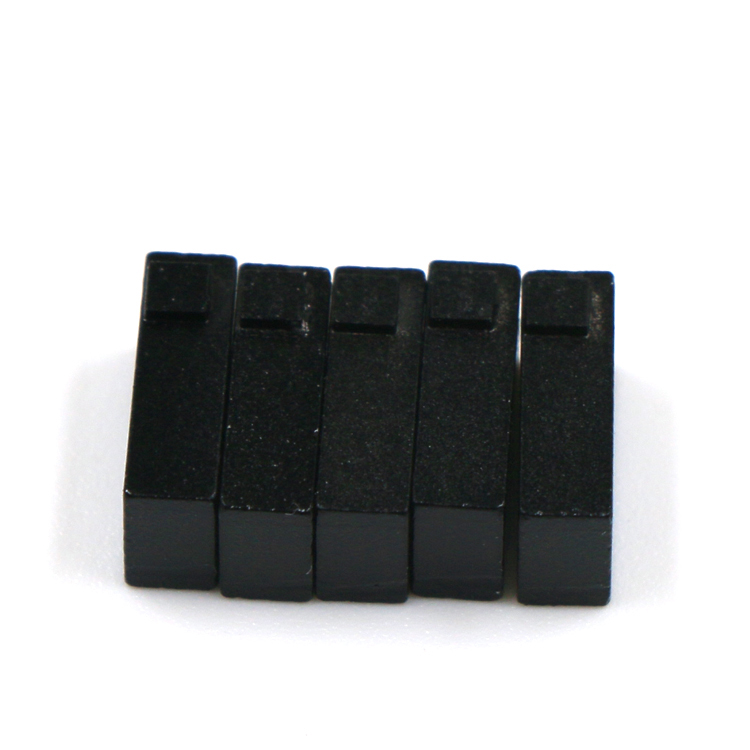

CT1005 Ceramic RFID Tag – For Pallets & Assets Management
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
US 902-928MHz, EU 865-868MHz
Tag dimensions
10*5*3mm
Mechanical Specification
Size
10*5*3mm
Product model
Jasper
Weight
1.4g
Avg read range on metal,4W EIRP
3.6m
Avg read range in metal,4W EIRP
1.8m
Encasing
Durable paint
Electrical Specification
Protocol
EPC C1G2 (ISO 18000-6C)
Operating frequency
902-928 MHz (US); 866-868 MHz (EU)
IC type
Alien H3
Memory configuration
512-bit user memory; 64-bit TID;96-bit EPC
Read rate
400 tags per second for 96-EPC bit number
Write Cycles
100,000 at 25℃
Data retention
50 years
Read and write times
100,000 times
Warranty
1 year
Environmental Resistance
Operating temperature
-40°C~85°C
Ambient temperature
-40°C~150°C
Sealing
IP68
Attachment
Adhesive
Application Area
Logistics & Supply Chain
RFID increases visibility of processes in the areas of logistics and supply chain management. This real-time updated information help us maximize efficiency and reduce operating…
Retail & Apparel
In the field of clothing and footwear retailing, the use of RFID can increase the inventory accuracy rate to 99%, creating a perfect shopping experience…
Get a Quote / Datasheet
Related Products
CT2509 Ceramic Anti-Metal Tag – For Pallets
CT0505 Ceramic RFID Tag – For Pallets & Assets Management

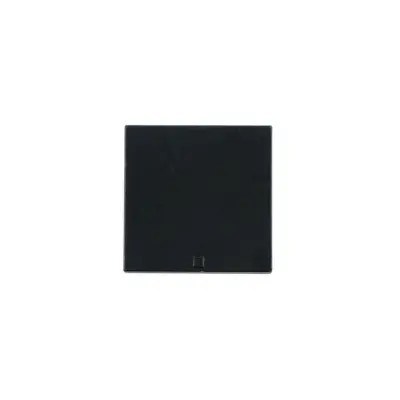

CT3030 Ceramic Anti-Metal Tag – For Pallets
