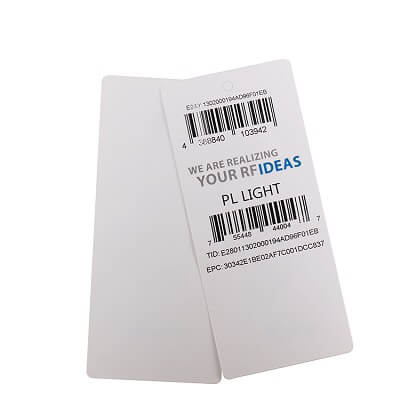

AT6330 Clothing Tag – For Retail & Apparel
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
(US Standard) 902-928 MHz
Tag dimensions
63 * 30 * 0.2mm
Mechanical Specification
Inlay Material
PET
Surface Material
Ribbon
Color
White
Package Style
Roll / Sheet
Installation Method
Suture
Antenna Dimensions
63 * 30 * 0.2mm
Electrical Specification
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Frequency
(US Standard) 902-928 MHz
IC type
Impinj M730
Memory
EPC 128 bits; TID 96 bits; User Memory: No
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
Non Metal Surface
Reading Range
About 3m(US Standard, Handheld 1W)
Environmental Resistance
Operating temperature
-20°C～80°C
Storage Temperature
-30°C～120°C
Custom Information
Printing, Coding, Writing data, etc.
Shelf Life
20°C~30°C,40~60% Relate Humidity. More than 2 Years;
Application Area
Healthcare
Applying RFID to pharmaceutical products and testing reagents can help achieve more accurate tracking and verification of drugs and reagents throughout the supply chain.
Member Management
RFID technology combined with member management software can realize access control, member information tracking, cashless payment and other functions, and is widely used in gyms,…
Goods Certified
The advantage of RFID anti-counterfeiting technology is that each tag has a globally unique ID number - UID. The UID is burned into the ROM…
