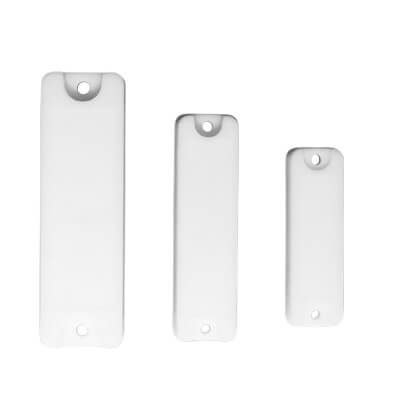

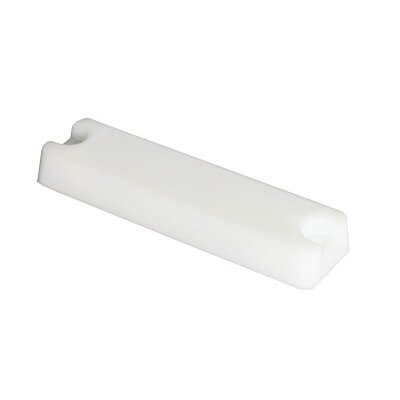

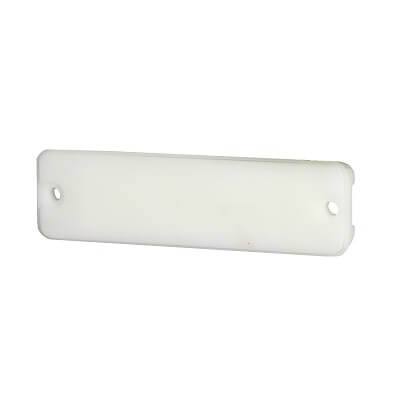

ABS8825UA Anti-metal RFID Tag – For Logistics & Assets Management

Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C

Operational frequency
US 902-928MH

Tag dimensions
88*25*9mm / 3.46” * 0.98” * 0.35”

Mechanical Specification

Substrate
PET

Shell material
ABS

Weight
About 19.4g / pc

Color
Light-blue

Tag dimensions
88*25*9mm / 3.46”*0.98”*0.35”

Thickness
9mm (Hole size: Φ4mm)

Installation method
Back glue, Screws, Rivets

Electrical Specification

Device type
Class 1 Generation 2 passive
UHF RFID transponder

Air interface protocol
EPC Global Class1 Gen2
ISO 18000-6C

Operational frequency
US 902-928MHz

IC type
Impinj M730

Memory configuration
EPC 128 bits, Unique TID 96 bits,User Memory 0 bits

Application medium
Metal surface

Reading range(Handheld reader)
More than 8m

Data storage
10 years

Read and write times
100,000 times

Environmental Resistance

Operating temperature
-20°C~80°C / -4°F~176°F

Ambient temperature
-30°C~120°C / -22°F~248°F

Sealing
IP67

Certification
RoHS

Application Area
