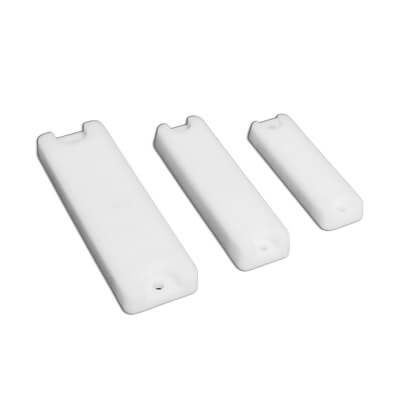

ABS7022UA Anti-metal RFID Tag – For Logistics & Assets Management
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
US 902-928MH
Tag dimensions
70*22*8mm / 2.75” * 0.86” * 0.31”
Mechanical Specification
Substrate
PET
Shell material
ABS
Weight
About 12g / pc
Color
Light-blue
Tag dimensions
70*22*8mm / 2.75”*0.86”*0.31”
Thickness
8mm (Hole size: Φ4mm)
Installation method
Back glue, Screws, Rivets
Electrical Specification
Device type
Class 1 Generation 2 passive
UHF RFID transponder
Air interface protocol
EPC Global Class1 Gen2
ISO 18000-6C
Operational frequency
US 902-928MHz
IC type
Impinj M730
Memory configuration
EPC 128 bits, Unique TID 96 bits,User Memory 0 bits
Application medium
Metal surface
Reading range(Handheld reader)
More than 5m
Data storage
10 years
Read and write times
100,000 times
Environmental Resistance
Operating temperature
-20°C~80°C / -4°F~176°F
Ambient temperature
-30°C~120°C / -22°F~248°F
Sealing
IP67
Certification
RoHS
Application Area
Logistics & Supply Chain
Retail & Apparel
