CT3030 Ceramic Anti-Metal Tag – For Pallets
Air interface protocol
EPC Global Class1 Gen2 ISO18000-6C
Operational frequency
(US Standard) 902-928 MHz
Tag Size
30 * 30 * 3 mm
Mechanical Parameters
Shell Material
Ceramics
Weight
About 13.8g / Piece
Shell Color
Black
Installation Method
Adhesive, Embedded
Tag Size
30 * 30 * 3 mm
Electrical Parameters
Air Interface Protocol
EPC Global Class1 Gen2 ISO18000-6C
Frequency
(US Standard) 902-928 MHz
IC Type
Alien Higgs 3
Memory
EPC 96 bits; TlD 64 bits; User Memory:512 bits
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
Metal Surface
Reading Range
5 m (US Standard, Handheld 2W)
Other Parameters
Operating Temperature
-20°C~80°C
Storage Temperature
-30°C~150°C
Sealing Level
IP67
Certification
RoHS Certification

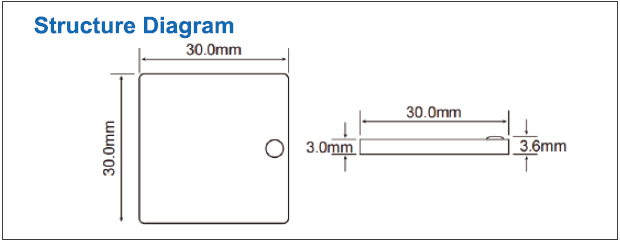

Diagram
Application Area
Logistics & Supply Chain
RFID increases visibility of processes in the areas of logistics and supply chain management. This real-time updated information help us maximize efficiency and reduce operating…
